Sony CCD-TRV43

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

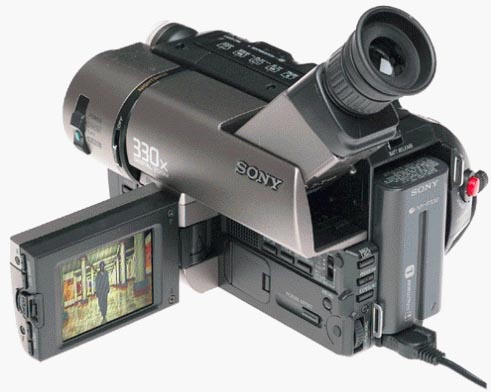

Sony CCD TRV43 - Right View
Sony CCD TRV43 - Left View

Specifications

Video format: Hi8
Audio: AFM hi-fi
Maximum CCD resolution: 470,000
CCD size: 0.25 inches
Progressive scan CCD: No
Flying erase heads: No
Eyepiece viewfinder: Yes
LCD screen size: 2.5 inches
LCD swivel: Yes
Aperture: f/1.4
Filter diameter: 37 millimeters
Optical zoom: 18x
Digital zoom: 330x
Programmed exposure modes: Spotlight, soft portrait, sports, beach and ski, sunset and moon, landscape
Auto light: Yes
Image stabilization: Yes
Infrared capability: Yes

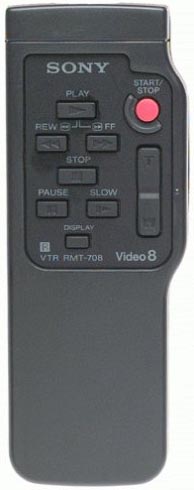

Remote included: Yes
Digital camera capability: No
Preset titles: Yes
Custom titling: Yes
Fade options: Black, mosaic, bounce, monotone
Special effects: Pastel, negative, sepia, black and white, solarized, mosaic, slim, stretch
Other special features: 16:9 widescreen recording, edit search, 5-language titler
IEEE 1394 output: No
Connections: Audio-video
S-Video output: No
Battery type: Lithium-ion
Included in box: Remote control, shoulder strap, mono audio-video cable, AC charger/adapter
Dimensions (WxHxD): 4.25 inches x 4.25 inches x 7.63 inches
Weight: 1.93 pounds
