Sony DCR-HC20 MiniDV Handycam

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!


Product Description From Sony:

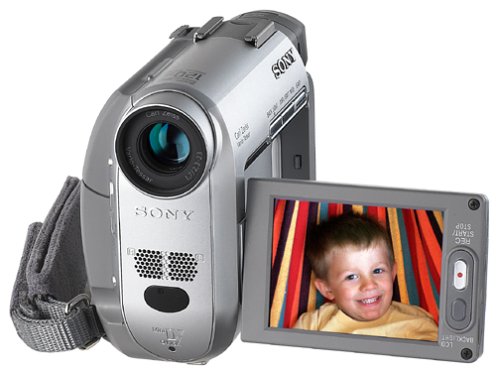

The Sony DCR-HC20 MiniDV Handycam Camcorder packs big features in a small package. It features a large 2.5" hybrid SwivelScreen LCD display with touch panel controls, a high-quality Carl Zeiss Vario-Tessar lens, NightShot Plus infrared recording system and USB streaming capabilities, all in a case...

Sony DCRHC20


Video format: MiniDV
Audio: 12-Bit/16-Bit PCM Digital Stereo
Maximum CCD resolution: 680,000 pixels
CCD size: 0.17 inches
Eyepiece viewfinder: Black and white (approx. 123,000 pixels)
LCD screen size: 2.5 inches
LCD swivel: Yes
Aperture: F/1.7-2.3
Filter diameter: 25mm
Optical zoom: 10x
Digital zoom: 120x
Autolight: No
Hot shoe for external light: Yes
Image stabilization: Yes
Infrared capability: Yes, Nightshot Plus
Remote included: Yes
Headphone jack: No
Digital still capability: Yes
MPEG movie mode: No
Included still memory: N/A
Preset titles: Yes
Custom titling: Yes
Programmed recording: Portrait, Beach & Ski, Sports Lesson, Landscape, Spotlight, Sunset & Moon
Fade options: Yes
Special effects: Yes
Motion sensor: No
Audio sensor: No
USB streaming: Yes
IEEE1394 (Firewire) output: Yes
USB output: Yes
S-Video output: Yes
Battery type: NP-FP50 InfoLithium (included)
Included in box: AC-L25 Power Adaptor/In Camera Charger, NP-FP50 InfoLithium Rechargeable Battery, RMT-830 Wireless Remote Commander Remote Control, CR2025 Battery, Multi A/V Cable, LCD Cleaning Cloth, USB Cable, CD-ROM w/ USB Driver (Picture Package Software v.1.0 for Sony)
Width: 2 inches
Height: 3.5 inches
Depth: 4.5 inches
Weight: 1 lb. 1 oz.
Warranty labor: 90 days
Warranty parts: 1 year
