Sony DCR-HC85

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

Product Description from Sony:

The DCR-HC85 features a 1/3.6" advanced HAD CCD imager which captures up to 2 megapixels of video information, translating into 530 lines of horizontal resolution. It also allows still image capture on Memory Stick DUO up to a huge 1600 x 1200 resolution.

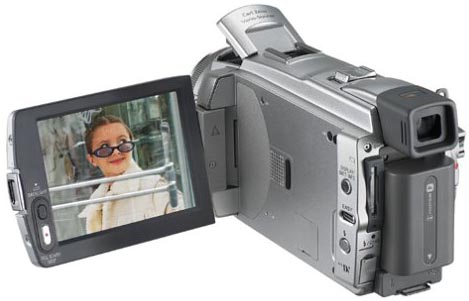

Sony DCR HC85 - Left View
Sony DCR HC85 - Rear View

Specifications

Video format: MiniDV
Imaging Device: 1/3.6" 2110K Pixel Advanced HAD CCD
Video Actual: 1080K Pixels
Still Actual: 1920K Pixels
F: 1.8 - 2.1
Focal Distance: 4.5 - 45mm
35mm Conversion: 52 - 520mm (Camera Mode); 39 - 390mm (Memory Mode)
Filter Diameter: 37mm
Optical Zoom: 10X
Digital Zoom: 120X
Focusing: Full Range Auto/Manual (Ring)
Minimum Illumination: 7 lux
NightShot Infrared System: Super NightShot Plus
Shutter Speed: 1/4 - 1/4,000 (AE Mode)
Viewfinder: Color, 123K Pixels
LCD: 3.5" (123K) Hybrid Color
Accessory Shoe: Intelligent
i.LINK DV Interface (IEEE1394): Yes
USB: Yes
USB Streaming: Yes
Headphone Jack: Yes
Dimensions: 2 7/16 x 3 1/2 x 6 1/2 inches
Weight: approx. 1 lb. 7 oz.
Supplied Accessories: AC-L25 Power Adaptor/ In Camera Charger, NP-FP50 InfoLithium Rechargeable Battery, RMT-831 Wireless Remote Commander Remote Control, Shoulder Strap, USB Cable, MSG-M8A Memory Stick Duo Media, MSAC-M2 Memory Stick Duo Adapter, Lens Cap, Lens Hood, Multi A/V Cable, LCD Cleaning Cloth, CD-ROM with USB Driver (Picture Package Software v.1.0 for Sony)
