Sony DCR-TRV140

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

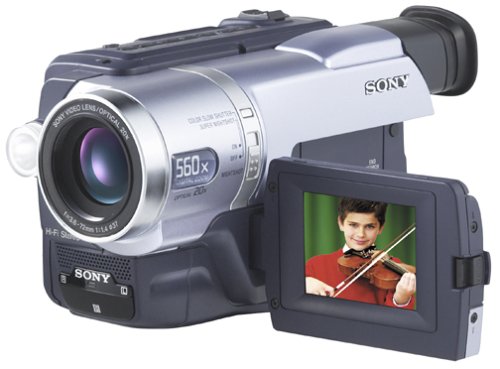

Sony DCR TRV140 - Front View
Sony DCR TRV140 - Rear View


Video format: Digital8
Progressive scan CCD: No
Flying erase heads: No
Audio: PCM digital stereo
Maximum CCD resolution: 460,000 pixels
CCD size: .25 inches
Eyepiece viewfinder: Yes
LCD screen size: 2.5 inches
LCD swivel: Yes
Aperture: F/1.4-2.9
Filter diameter: 37mm
Optical zoom: 20x
Digital zoom: 560x
Autolight: No
Hot shoe for external light: Yes
Image stabilization: SteadyShot
Infrared capability: Yes
Remote included: Yes
Digital camera capability: Yes
Included still memory: No
IEEE1394 output: Yes
Connections: USB, IEEE1394, S-Video, mini-A/V
S-Video output: Yes
Battery type: FM30 InfoLithium
Included in box: Power adapter, FM30 InfoLithium battery, remote control, 2 AA batteries, A/V cable, lens cap, shoulder strap, USB cable, software CD-ROM
Dimensions (WxHxD): 3.63 inches x 4.13 inches x 7.88 inches
Weight: 1.25 lbs.
