Sony DSR-450WSL

User Manual

Sorry, we do not currently have a manual available for this item.
Request a manual | Submit a manual

Features

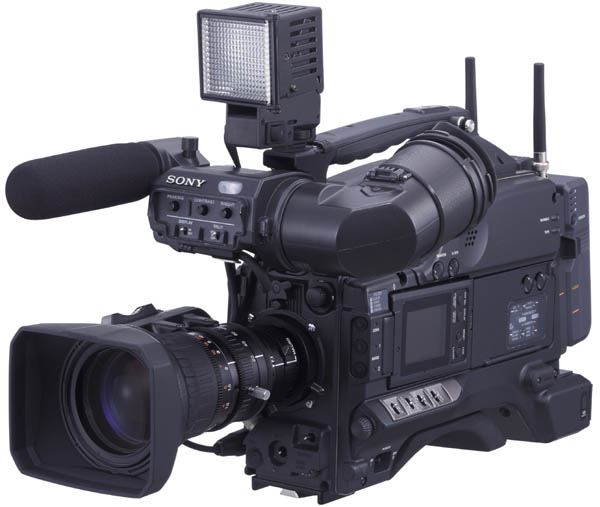

Sony DSR-450 WSL

Specifications

Power requirements: DC 12V (11 to 17V)
Power consumption: 17W (when recording with the LCD monitor off)
Operating temperature: 0 degrees C to 40 degrees C (32 degrees F to 104 degrees F)
Storage temperature: -20 degrees C to 60 degrees C (-4 degrees F to 140 degrees F)
Operating humidity: Less than 85%
Storage humidity: Less than 85%
Recording format: DVCAM, DV-SP
Continuous battery operating time: 300 minutes with BP-GL95; 180 minutes with BP-GL65; 170 minutes with BP-L60S
Weight: Approx. 8 lb, 10 oz for main body only
Approx. 14 lb, 9 oz with VF, microphone, lens, battery pack (BP-GL95) and miniDV tape
Dimensions (w/h/d): 146 x 268 x 328mm (5 ¾ x 10 5/8 x 13 inches)
Image device: 3-chip 2/3-inch type, Power HAD EX CCD
Total picture elements: 1038 (H) x 1008 (V)
Effective picture elements: NTSC model: 980 (H) x 988 (V)
Spectral system: F1.4 prism system (with quarts filter)
Built-in filters: < ND filter > 1: Clear, 2: 1/4ND, 3: 1/16ND, 4: 1/64ND
Lens mount: Sony 2/3-inch type Bayonet mount
Sensitivity: F11 (3200K, 89.9% reflection chart, 2000 lx)
Minimum illumination: 0.03 lx with slow shutter (16 frames accumulation)
S/N ratio: NTSC model: 65dB, PAL model: 63dB
Smear Vertical: -140dB
Gain selection: -3dB, 0dB, 3dB, 6dB, 9dB, 12dB, 18dB, 24dB, 30dB and 36dB
Horizontal resolution: DSR-450WS/P: 850 TV lines (4:3 mode), 800 TV lines (WS mode)
Vertical resolution: 400TV lines (w/o EVS), 450TV lines (w/EVS)
Sync system: Internal Sync, GENLOCK IN/VIDEO IN (VBS or BS)
External Sync
