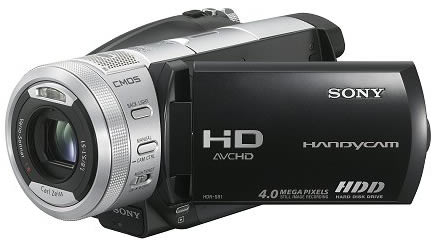

Sony HDR-SR1

User Manual

Sorry, we do not currently have a manual available for this item.
Request a manual | Submit a manual

Features

Sony HDR-SR1

Specifications

Imaging device:1/3-inch 2100K gross pixels ClearVID CMOS sensor
Pixels (gross):2100K
Recording media:30GB non-removeable hard disk drive
Video actual:1076K pixels (4:3); 1434K pixels (16:9)
Still actual:1991K pixels (4:3); 1493K pixels (16:9)
Dolby Digital output:N/A
Audio recording system:Dolby Digital 5.1
USB streaming:N/A
SteadyShot Image Stabilization:Yes (Super, Electronic)
Accessory shoe:Yes, active interface shoe
White balance:Auto, indoor, one-push, outdoor
Memory Stick Pro Media compatibility:Tested to support up to 2GB media capacity; does not support high speed transfer function; does not support Access Control security function
Still image mode:JPEG
Minimum illumination:5 Lux (0 Lux with Super NightShot Infrared System)
Low light capability:Super Nightshot
Analog audio/video inputs:N/A
Analog audio/video outputs:Yes (multi A/V)
Digital audio/video inputs:Yes (via USB)
Digital audio/video outputs:Yes (via USB)
USB ports:Yes, 2.0 high-speed compliant
Component video outputs:Yes
Headphone jack:Yes (stereo mini)
Microphone input:Yes (stereo mini)
Remote jack:Yes (stereo mini)
S-video input:N/A
S-video outputs:Yes (via optional accessory)
HDMI outputs:Yes
LCD:3.5-inch (211K pixels) wide (16:9) hybrid touch-panel Clear Photo LCD plus display
Lens type:Carl Zeiss Vario-Sonnar T*
Viewfinder:Color, 123K pixels (16:9)
Docking station:N/A
Microphone:Yes (built-in 5.1-channel)
35mm equivalent:41.3-485mm (16:9 Camera Mode), 50.5-594mm (4:3 Camera Mode), 40.4-404mm (16:9 Memory Mode), 37-370mm (4:3 Memory Mode)
Aperture:f1.8-2.9
Exposure:Touch panel/ring
Filter diameter:30mm
Focal distance:5.1-51mm
Focus:Full-range auto/manual (ring)/one-touch
Progressive shutter mode:Yes
Shutter speed:Auto, 1/60 - 1/500 (AE mode)
Optical zoom:10x
Digital zoom:80x
Resolution:4-megapixel; 2304 x 1728 (4:3)
Battery type:InfoLithium with AccuPower meter system (NP-FM50)
Power requirements:7.2V battery pack; 8.4V AC adapter
Operating system compatibility:Microsoft Windows 2000 Professional, XP Home, XP Professional
Supplied software:Picture Motion Browser ver. 1.0
Video recording system:AVCHD (HD) and MPEG2-PS (SD)
Video signal system:NTSC color, EIA standards
Analog-to-digital converter:N/A
Formats supported:AVCHD (HD), MPEG-2 (SD), and JPEG
Dimensions (H x W x D):3 1/14 x 3 4/13 x 6 1/2 inches (78 x 84 x 165mm)
Supplied accessories:Power adapter/in-camera charger (AC-L15), InfoLithium rechargeable battery (NP-FM50) Remote Commander remote control (RMT-835), component video cable, A/V cable (stereo), application CD-ROM with driver, USB cable
