Sony KDE-37XS955

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

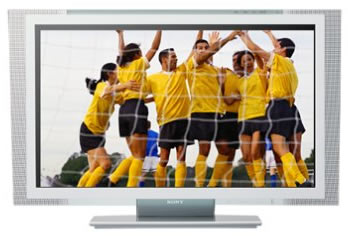

Sony KDE-37XS955

Specifications

Screen size:37 inches
TV type:Gas plasma
HDTV capable:Yes
Aspect ratio:16:9
Speaker wattage per channel:25 watts x 2 plus 50 watts x 1 (subwoofer)
Number of speakers:3 (2-way left/right speakers, plus subwoofer)
Amplifier:S-Master 1-bit digital amplifier
Flash-memory port:Yes (Memory Stick, compatible with JPEG images, MP3 music files, MPEG-1 video)
Horizontal resolution:1,024 lines
Line doubling:Yes (DRC MultiFunction circuitry)
3:2 pulldown detection:Yes (CineMotion Reverse 3-2 Pulldown Technology)
Signal type:NTSC, ATSC (480p, 720p, 1080i; DTV receiver built in)
Black-level expansion:No
Auto channel setup:Yes
Channel labeling:Yes
Channel fix:Yes
Closed captioning:Yes
Mute:Yes
Favorite channel:Yes (with preview)
Picture modes:Program Palette (Vivid/Movie/Standard/Sports) presets
Picture enhancements:BN Smoother circuit, Direct Digital II circuitry, DRC Digital Reality Creation MultiFunction circuitry (displays 4 times the picture resolution relative to conventional sets), MultiImage Driver (MidX) circuitry, Sony re-engineered Plasma Panel Driver LSI, WEGA Engine system
Multilingual menu:Yes (English, Spanish, French)
Parental control:Yes (V-Chip)
Picture-in-picture (PIP):Yes (single-tuner, including twin-view picture and picture)
Remote control:Yes
SAP:Yes (auto SAP)
Sleep timer:Yes (and 2-event on-timer)
Audio tone controls:Bass, treble, woofer level
Audio balance:Yes
Surround sound:TruSurround SRS audio (simulated surround)
VGA/SVGA input:0
Audio outputs:1 fixed-/-variable level (user-selectable) stereo analog (left/right) RCA, 1 monaural RCA subwoofer output, 1 optical digital-audio output (PCM/Dolby Digital)
Audio inputs:5 stereo analog (left/right) RCA, 1 monaural RCA center-channel input (clip-type speaker terminal)
Video outputs:0
Video inputs:9
Headphone jack:No
Digital video input:1 (HDMI with HDCP content protection)
Component video:2
Composite video:3
S-video:3
RF:1
Control port:1 (Control S, input and output)
CableCARD ready:Yes
Pixels:1,024 x 1,024
Color temperature control:Yes (5000 to 7500K)
Front AV jacks:No
Side AV jacks:Yes (including S-video)
Sound leveler system:Yes (Steady Sound)
Power supply:AC 120V, 60 Hz
Power consumption: Use: 350 watts; standby: .5 watts; CableCARD standby: 26 watts
Energy Star compliant:Yes
Optional accessories:Floating Glass Stand SU-PF3, Wall Bracket SU-PW3
Width:41.375 inches
Height:26.375 inches
Depth:14.25 inches
Weight:112.44 pounds
