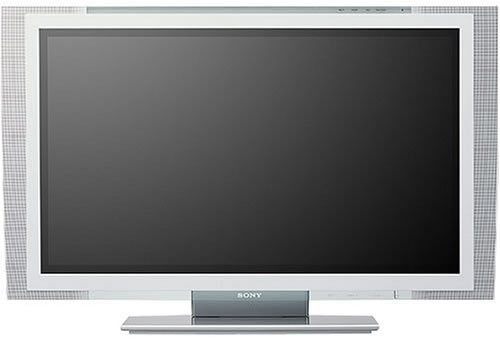

Sony KDE-50XS955


Screen size:50 inches
TV type:Gas-plasma
HDTV capable:Yes
Aspect ratio:16:9
3:2 pulldown detection:Yes (CineMotion Reverse 3:2 Pulldown)
Speaker wattage per channel:25 watts x 2 (left/right), plus 50 watts for a built-in subwoofer
Number of speakers:3 (two 2-way stereo speakers, 1 powered subwoofer)
Amplifier:S-Master digital amplifier
Flash-memory port:Yes (Memory Stick, with MP3/MPEG-1 video compatibility)
Tuner:ATSC Integrated Tuner
CableCARD slot:Yes (digital cable-ready)
LCD panels: Wide XGA LCD Panels (WXGA Panel = 0.87 inches); 3 Wide XGA LCD Panels: 3.28 Million Dots Resolution (1386 x 788 x 3)
First-surface mirror:Yes
Comb filter:3D digital
Signal type:NTSC, ATSC (480i, 480p, 720p, 1080i)
Picture enhancements:Block-Noise Smoother (BNS), DRC Multifunction Circuitry, Direct Digital II circuitry, MultiImage Driver (MidX) circuitry, Sony Re-engineered Plasma Panel Driver LSI, WEGA Engine system
Picture modes:Program Palette presets (Vivid, Standard, Movie, Sports); Auto Wide/Wide Screen Modes
Favorite channel:Yes (with preview)
Surfing:Speed Surf channel selection
Advanced Video Menu Functions:Yes
Auto channel setup:Yes
Closed captioning:Yes
Multilingual menu:English, Spanish, French
Parental control:Yes (V-Chip)
Picture-in-picture (PIP):Single-tuner (1 TV channel plus 1 input source)
Remote control:Yes (RM-Y1004)
Sleep timer:Yes (and 2-event clock timer)
Surround sound:TruSurround SRS Audio Sound Processing
VGA/SVGA input:0
Audio outputs:1 stereo analog (left/right) RCA with selectable fixed-/variable-level output; 1 monaural RCA subwoofer output
Audio inputs:1 monaural RCA center-channel input
Digital video input:1 (HDMI)
Control ports:Control S (1 in/1 out)
Pixels:1,366 x 768
Color temperature control:Yes (5000 to 7500 degrees K)
Front AV jacks:Yes
Sound leveler system:Yes (Steady Sound)
Wall mountable:No
Power supply:AC 120V 60 Hz
Optional accessories:Floating Glass Stand
Energy Star compliant:Yes
Width:52.625 inches
Height:31.06 inches
Depth:6.25 inches
Weight:149.9 pounds
