Sony KDF-42WE655

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

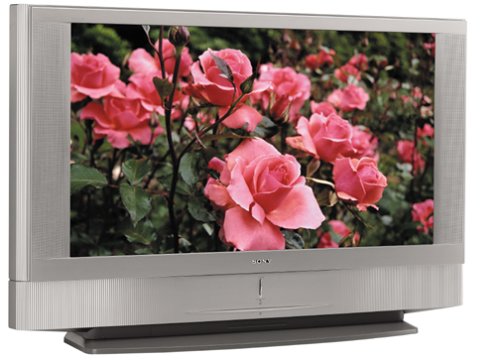

Sony KDF 42WE655


Screen size:42 inches
TV type:Projection LCD
HDTV capable:Yes
Aspect ratio:16:9
3:2 pulldown detection:Yes (CineMotion technology)
Speaker wattage per channel:15 x 2 (S-Master 1-bit digital amplifier)
Number of speakers:2
Flash-memory port:Yes (Memory Stick)
Tuner:ATSC Integrated Tuner
CableCARD slot:Yes (digital cable-ready)
LCD panels:Wide XGA LCD Panels (WXGA Panel = 0.87 inches); 3 Wide XGA LCD Panels
Includes radio:No
Comb filter:3D digital
First surface mirror:Yes
Signal type:NTSC, ATSC (480i, 480p, 720p, 1080i)
Picture enhancements:WEGA Engine system, optical engine, DRC Digital Reality Creation Multi-Function Circuitry, Clear Corner Focus, Color Corrector Circuit
Picture modes:Picture Mode (Vivid, Standard, Pro); DRC Palette presets (Custom 1, Custom 2, and Custom 3); Wide Modes (Normal, Full, Zoom, Wide Zoom)
Favorite channel:Yes (with preview)
Surfing:Speed Surf channel selection
Auto channel setup:Yes
Channel labeling:Yes
Channel fix:Yes
Input labeling:Yes
Closed captioning:Yes
Multilingual menu:English, Spanish, French
Parental control:Yes (V-Chip)
Picture-in-picture (PIP):2-tuner with TwinView (side-by-side viewing)
Remote control:Yes (RM-Y915)
Audio tone controls:BBE Sound enhancement
Surround sound:TruSurround SRS Audio Sound Processing
VGA/SVGA input:0
Audio outputs:1 monaural RCA subwoofer output, 1 optical digital-audio output (PCM/Dolby Digital)
Audio inputs:7 stereo analog (left/right) RCA
Video outputs:0
Video inputs:11
Headphone jack:No
Digital video input:1 (HDMI)
Component video:2 (1080i, 720p, 480p, 480i)
Composite video:4
Control ports:Control S (1 in/1 out)
Monitor:No (includes NTSC and ATSC tuners)
Pixels:1,366 x 788 (x 3)
Dot pitch:.098 x .098 mm
Lamp:UHP Lamp (100 watts)
Front AV jacks:Yes
Side AV jacks:No
Sound leveler system:Yes (Steady Sound)
Wall mountable:No
Power supply:AC 120V 60 Hz
Power consumption:230 watts (standby
Optional accessories:Spare lamp (XL-2100 or XL-2100U), A/V Stand (SU-GW11)
Energy Star compliant:Yes
Width:47.24 inches
Height:32.24 inches
Depth:15.08 inches
Weight:64.4 pounds
In the box:TV, remote control, remote batteries, a user's manual, and warranty/registration information
