Sony KDF-55XS955

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

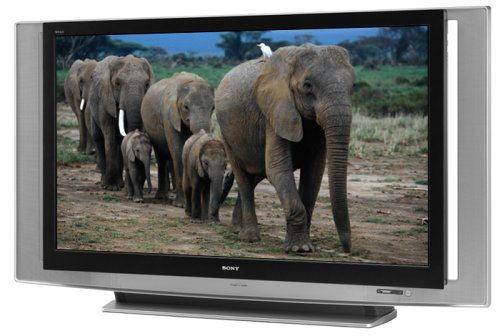

Sony KDF 55XS955


Screen size:55 inches
TV type:Projection LCD
HDTV capable:Yes
Aspect ratio:16:9
3:2 pulldown detection:Yes (CineMotion Reverse 3:2 Pulldown)
Speaker wattage per channel:5 watts x 2 (left/right), 20 watts x 1 (subwoofer)
Number of speakers:3 (two 2-way stereo speakers, 1 powered subwoofer)
Flash-memory port:Yes (Memory Stick, with MP3/MPEG-1 video compatibility)
Tuner:ATSC Integrated Tuner
CableCARD slot:Yes (digital cable-ready)
LCD panels:Wide XGA LCD Panels (WXGA Panel = 0.87 inches); 3 Wide XGA LCD Panels
First-surface mirror:Yes
Includes radio:No
Comb filter:3D digital
Signal type:NTSC, ATSC (480i, 480p, 720p, 1080i)
Picture enhancements:WEGA Engine system, Live Color, Gamma Corrector, detail enhancer, black corrector, clear-white circuit, BN smoother
Picture modes:Program Palette presets (Vivid, Standard, Movie, Sports); Wide Modes (Normal, Full, Zoom, Wide Zoom)
Favorite channel:Yes (with preview)
Surfing:Speed Surf channel selection
Advanced Video Menu Functions:Yes
Auto channel setup:Yes
Channel labeling:Yes
Channel fix:Yes
Input labeling:Yes
Closed captioning:Yes
Multilingual menu:English, Spanish, French
Parental control:Yes (V-Chip)
Picture-in-picture (PIP):2-tuner with Twin View (side-by-side viewing)
Remote control:Yes (RM-Y915)
Sleep timer:Yes
Audio tone controls:BBE Sound enhancement
Surround sound:TruSurround SRS Audio Sound Processing, Dolby Virtual Surround
VGA/SVGA input:0
Audio outputs:1 monaural RCA subwoofer output
Audio inputs:7 stereo analog (left/right) RCA
Video outputs:0
Video inputs:11
Headphone jack:No
Digital video input:2 (HDMI)
Component video:2 (1080i, 720p, 480p, 480i)
Composite video:4
Control ports:Control S (1 in/1 out)
Monitor:No (includes NTSC and ATSC tuners)
Pixels:1,366 x 788 (x 3)
Lamp:UHP Lamp (132W)
Front AV jacks:Yes
Side AV jacks:No
Sound leveler system:Yes (Steady Sound)
Wall mountable:No
Power supply:AC 120V 60Hz
Optional accessories:Spare lamp (XL-2200), A/V Stand (SU-GW12)
Energy Star compliant:Yes
Width:62 inches
Height:37.5 inches
Depth:19 inches
Weight:105.69 pounds
In the box:TV, remote control, remote batteries, a user's manual, and warranty/registration information
