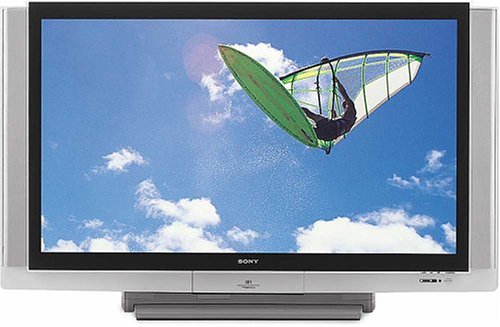

Sony KDF-70XBR950

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!


Sony KDF 70XBR 950


Screen size: 70 inches
TV type:Projection LCD
HDTV capable:Yes
Aspect ratio:16:9
Speaker wattage per channel:5 watts x 2 (left/right), plus 20 watts x 1 subwoofer
Number of speakers:3 (two 2-way speakers and 1 subwoofer)
LCD panels:Wide XGA LCD Panels (WXGA Panel = 0.87 inches); 3 Wide XGA LCD Panels
Flash-memory port:Yes (Memory Stick media port)
Includes radio:No
Comb filter:Yes (3D digital)
Horizontal resolution:Information not available
Aspect ratio control:Yes
Invar shadow mask:No
Scan velocity modulation:Yes (off/low/high)
First-surface mirror:Yes
First-surface mirror:Yes
3:2 pulldown detection:Yes (CineMotion technology)
Noise reduction:No
Includes DVD player:No
Includes VCR:No
Signal type:NTSC, ATSC (480i, 480p, 720p, 1080i)
Protective screen guard:Yes (with antireflective coating)
Black-level expansion:No
Auto channel setup:Yes (express tuning system)
Channel labeling:Yes (up to 40 channels)
Input labeling:Yes
Channel fix:Yes
Closed captioning:Yes
Surfing:SpeedSurf channel selection
Picture enhancements:WEGA Engine, optical engine, DRC Multi-Function, Direct Digital Circuitry (DDC), Multi Image Driver-X (MID-X), Image Quality Enhancer LSI, Clear Corner Focus
Picture modes:Program Palette presets; Wide Modes (Normal, Full, Zoom, Wide Zoom)
Favorite preview:Yes
Last-channel recall:Yes
Multilingual menu:Yes (English, Spanish, French)
Parental control:Yes (V-Chip)
Picture-in-picture (PIP):Yes (Flexible Twin View 2-tuner PIP)
Remote control:Yes
Clock/timer:Yes (2-event)
Sleep timer:Yes
Surround sound:Yes (TruSurround SRS simulated for stereo programs)
VGA/SVGA input:No
Audio outputs:1 stereo analog (left/right) RCA, fixed/variable level, 1 monaural RCA subwoofer output
Audio inputs:7 stereo analog (left/right) RCA
Video outputs:1 (composite-video)
Digital video input:1 DVI-HDTV
Component video:2 (HD)
Composite video:4
Control port:Control S in/out
Monitor:No (includes NTSC and ATSC tuners)
Pixels:1,366 x 788 (x 3)
Lamp:UHP Lamp (100 watts)
Color temperature control:Yes
Front AV jacks:Yes
Side AV jacks:No
Sound leveler system:Yes (SteadySound)
Component linking:Yes
Optional accessory:Spare lamp XL-2100U, A/V stand SU-GW3
Power supply:AC 120V, 60 Hz
Energy Star compliant:Yes
Width:61.97 inches
Height:37.48 inches
Depth:19.06 inches
In the box:TV, remote control, remote batteries, a user's manual, and warranty information
