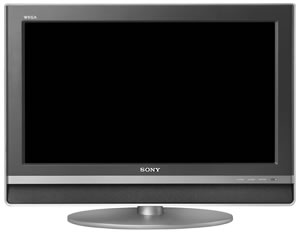

Sony KDLV-26XBR1

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

Sony KDLV-26XBR1

Specifications

Aspect Ratio: 16:9
Screen Size: 26"
Speaker Type:2-way Speakers, Oval Cone
Speakers (Total):4
Tweeter Size:1 4/7 (40mm)
Full Range Speaker Size:40 x 100 mm Oval
Audio Power Output:26W Total (13W x 2)
Stand Tilt Range:Forward 3░ / Back 8░
Stand Swivel Range: L/R: 30°
CableCARDT Slot:1 (Rear)
Memory Stick« Media Slot:1 (Front) - 1 GB, Memory Stick PROT Media Compatibility
PC Video/Audio Input(s):1 (Rear)
USB Port(s):1 (Side) - Digital Camera Port USB 2.0 High Speed
HDMIT Connection Input(s):1 (Rear) with Analog Audio
Component video (Y/Pb/Pr ) Input(s):3 (1 Front/2 Rear) 480i, 480p, 720p, 1080i
S-VIDEO INPUT(s):1 (Rear)
Composite Video Input(s):3 (1 Front/2 Rear)
Audio In:6 (1 Front/5 Rear)
Digital Audio Output(s):Dolby« Digital Optical Output - 1 (Rear)
Audio Out (Variable/Fixed):1 (Rear)
RF Connection Input(s):2 (Rear)
Headphone output(s):1 (Front)
Internal Power Supply:Yes
Power Consumption (in Operation):140W
Power Consumption (in Standby):Less than 0.15 W
Power Requirements:AC 120-240V, 50/60Hz
Power Management:Yes (for PC Input Only)
Native Resolution:720p
Display Resolution:1366 x 768
Overscan:Normal, -1, -2
Viewing Angle:Right/Left
