Sony KDP-51WS655

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

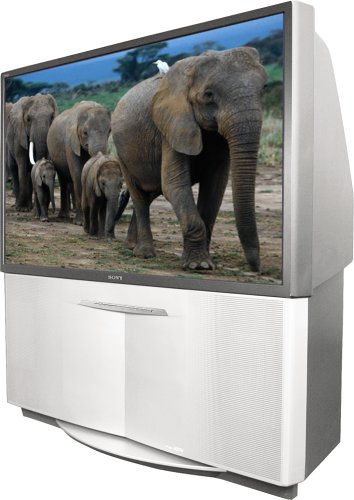

Sony KDP-51WS655

Specifications

Screen size:51 inches
TV type:Rear-projection
HDTV capable:Yes
Aspect ratio:16:9
CRT:HD Microfocus CRT and lens system
Convergence:Flash Focus auto and manual convergence
3:2 pulldown detection:Yes (CineMotion reverse 3:2 pulldown)
Speaker wattage per channel:20
Number of speakers:2 (2-way each)
Flash-memory port: Yes (Memory Stick playback: MP3 audio, MPEG-1 video)
CableCARD slot:Yes (digital cable-ready)
Comb filter:3D digital comb filter
Line doubling:Yes (Digital Reality Creation Circuitry, which enhances standard-definition sources)
Signal type:NTSC, ATSC (480p, 720p, 1080i)
Velocity-scan modulation:Yes (Clear Edge VM wideband velocity-scan modulation)
Auto pedestal clamp:Yes
Auto white balance:Yes
Picture enhancements:Digital Reality Creation MultiFunction Circuitry, Multi Image Driver (MID X) Circuitry, Dynamic Focus Circuitry (automatically adjusts the picture during each scanning line for consistent corner-to-corner sharpness), HD Detailer wideband video amplifier
Picture modes:Auto 16:9 enhanced mode with auto ID1 detection; Program Palette presets (Vivid, Movie, Standard, Sports)
Surfing:Speed Surf channel surfing; scrolling channel index (1 "main" picture and 4 scrolling channels)
Picture freeze:Yes
Auto channel setup:Yes
Channel fix:Yes
Channel labeling:Yes
Input labeling:Yes
Closed captioning:Yes
Mute:Yes
Favorite channel:Yes
Last-channel recall:Yes
Multilingual menu:English, Spanish, French
Parental control:Yes
Picture-in-picture (PIP):Yes (2-tuner TwinView)
Remote control:Yes
SAP:Yes
Sleep timer:Yes
Audio tone controls:Yes (electronic bass, treble), BBE sound enhancement
Audio balance:Yes
Surround sound:SRS TruSurround simulated surround sound; Dolby Digital 5.1 output (to compatible decoder/processor)
VGA/SVGA input:0
Audio outputs: 1 stereo analog (left/right) RCA: fixed-/variable-level (selectable), 1 optical digital-audio output
Audio inputs:7 stereo analog (left/right) RCA
Video outputs:1 (composite-video)
Video inputs:12
Headphone jack:No
Digital video input:1 (HDMI)
Component video:2 (HD)
Composite video:4
S-video:3
RF:2
Control port:1 Control S
Monitor:No (includes NTSC and ATSC tuners)
Color temperature control:Yes (Trinitone color temperature control)
Front AV jacks:Yes
Sound leveler system:Yes (SteadySound)
Power supply:AC 120V, 60 Hz
UPC:0272426495450
Width:47 inches
Height:53.125 inches
Depth:25.625 inches
Weight:173 pounds
