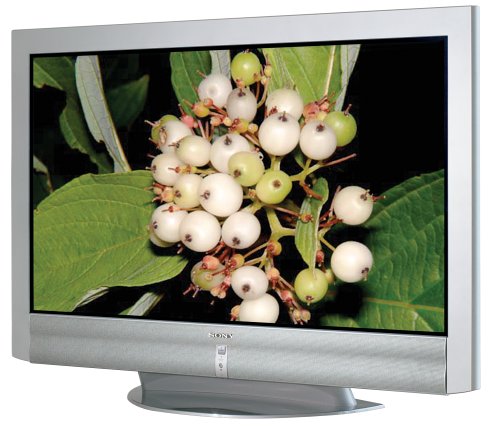

Sony KE-32TS2

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

Sony KE 32TS2

Specifications

Screen size:32 inches
TV type:Gas-plasma
HDTV capable:Yes
Aspect ratio:16:9
3:2 pulldown detection:Yes (CineMotion processing)
Speaker wattage per channel:7
Number of speakers:2
Line doubling:Pixel-by-Pixel I/P Conversion generates progressive-scan images from all interlaced (SD) inputs
Signal type:NTSC, decoded ATSC (480i, 480p, 1080i, 720p, computer RGB)
Picture enhancements:Pixel-by-Pixel I/P Conversion, Dot Phase Adjustment (computer input only), Digital Pixel Generator System
Picture modes: Program Palette presets: combinations of picture settings engineered to make the most of specific entertainment types: Vivid, Standard, Movie and Sports
Auto channel setup:Yes
Closed captioning:Yes
Favorite channel:Yes
Multilingual menu:Yes (English, Spanish, French)
Parental control:Yes (V-Chip)
Picture-in-picture (PIP):No
Remote control:Yes
Sleep timer:Yes (and 2-event clock timer)
Surround sound:TruSurround SRS audio processing (simulates surround from 2 speakers)
VGA/SVGA input:1 (15-pin D-Sub, with Dot PHASE Adjustment)
Audio outputs:1 stereo analog (left/right) RCA, 1 monaural RCA subwoofer output
Audio inputs:3 stereo analog (left/right) RCA
Video outputs:1 (composite-video)
Video inputs:9
Headphone jack:Yes (.125-inch, front-panel)
Digital video input:1 (DVI with HDCP)
Component video:2 (HD)
Composite video:2
S-video:2
RF:1
Pixels:852 x 1,024 (V x H)
Contrast ratio:1,000:1
Color temperature control:Yes (5000 to 7500K)
Front AV jacks:No
Remote component linking:Control S in/out
Wall mountable:Yes (with optional mounting accessory, WB-PW2)
Optional accessories: A/V stand: SU-TS1, wall bracket: WB-PW2
Power supply:AC 120V, 60 Hz
Power consumption:300 watts (standby: 1.7 watts)
Environmental:Optimal operation at less than 1900m or 6248 feet (with air pressure greater than 800Hpa)
Energy Star compliant:Yes
Width:33.75 inches
Height:24.75 inches
Depth:5.25 inches
Weight:57.32 pounds
