Sony KE-50XS910

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

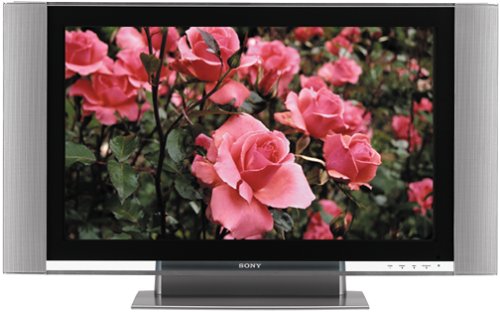

Sony KE 50XS910


Screen size:50 inches
TV type:Gas-plasma
HDTV capable:Yes
Aspect ratio:16:9
3:2 pulldown detection:Yes (CineMotion reverse 3:2 pulldown technology)
Memory port:Yes (Memory Stick; compatible with JPEG photos, MP3 music files, and MPEG-1 video)
Speaker wattage per channel:15
Number of speakers:2 (2-way each)
Comb filter:3D digital
Noise reduction:Block Noise Smoother technology
Signal type:NTSC, ATSC (480p, 720p, 1080i)
Picture enhancements:Advanced WEGA Engine system, Digital Reality Creation circuitry, re-engineered Plasma Panel Driver LSI, Direct Digital II Circuitry (DDC), Multi-Image Drive (MID X) circuitry
Picture modes: Program Palette presets : (Vivid, Standard, Pro), Wide Modes (Wide Zoom, Normal, Full, Zoom)
Surfing:Speed Surf channel selection
Picture freeze:Yes
Auto channel setup:Yes
Favorite channel:Yes (with preview mode)
Channel labeling:Yes
Channel coverage: VHF 2-13, UHF: 14-69, CATV: 1-125
Closed captioning:Yes
Last-channel recall:Yes
Multilingual menu:English, Spanish, French
Parental control:Yes (V-Chip)
Picture-in-picture (PIP):Yes (TwinView single-tuner picture-and-picture)
Remote control:Yes
SAP:Yes (including auto SAP)
Sleep timer:Yes
Clock timer:Yes (2 events)
Audio tone controls:Electronic treble, bass
Audio balance:Yes
Surround sound:TruSurround SRS (simulated surround sound from any 2 speakers)
VGA/SVGA input:0
Audio outputs: 1 stereo analog (left/right) RCA: fixed-/variable-level
Audio inputs:6 stereo analog (left/right) RCA
Video outputs:0
Video inputs:8
Headphone jack:Yes
Digital video input:1 (DVI HDTV)
Component video:2
Composite video:3
Control port:Control S (1 in, 1 out)
Monitor:No (includes NTSC and ATSC/QAM tuners)
Pixels:1,280 x 768
Color temperature control:Yes (5000 to 7500K)
Front AV jacks:No
Side AV jacks:Yes (including S-video)
Sound leveler system:Yes (SteadySound)
Wall mountable:Yes (features VESA-compliant mounting holes)
Power supply:AC 120V, 60 Hz
Power consumption: 430 watts (standby: 1.5 watts)
Energy Star compliant:Yes
Optional accessories: Compact Floating Glass Stand: SU-PF2
Width:56.5 inches
Height:34.69 inches
Depth:4.88 inches
Weight:134.5 pounds
