Home : Equipment : Sony : TV : KLV : KLV21SG2

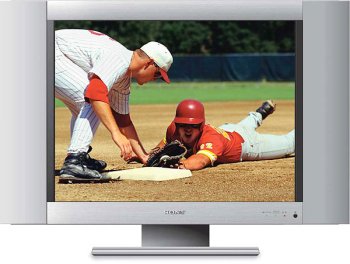

Sony KLV-21SG2

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

Sony KLV 21SG2

Specifications

Screen size:21 inches
TV type:a-Si TFT LCD
HDTV capable:Yes
Aspect ratio:4:3
3:2 pulldown detection:No
Memory port:Yes (Memory Stick; compatible with JPEG photos and MPEG-1 video)
Speaker wattage per channel:4 watts x 2
Number of speakers:2
Comb filter:3D digital
Noise reduction:Yes
Signal type:NTSC, decoded ATSC (480p, 720p, 1080i)
Picture enhancements:Digital Reality Creation circuitry, LCD panel driver, 16:9 enhanced mode, Dynamic Picture, Direct Digital Circuitry (DDC)
Picture modes:Program Pallette presets
Surfing:Speed Surf channel selection
Picture freeze:Yes
Auto channel setup:Yes
Favorite channel:Yes
Channel fix:Yes (permits cable-box control using TV's remote, with applicable cable boxes)
Channel coverage:VHF 2-13, UHF
Closed captioning:Yes
Last-channel recall:Yes
Multilingual menu:English, Spanish, French
Parental control:Yes (V-Chip)
Picture-in-picture (PIP):No
Remote control:Yes
SAP:Yes (including auto SAP)
Sleep timer:Yes (15, 30, 45, 60, 90 minutes)
Audio tone controls:BBE sound, SRS WOW processing
Surround sound:No
VGA/SVGA input:0
Audio outputs: 1 stereo analog (left/right) RCA: fixed-/variable-level
Audio inputs:3 stereo analog (left/right) RCA
Video outputs:0
Video inputs:6
Headphone jack:Yes
Digital video input:0
Component video:1
Composite video:2
S-video:2
RF:1
Pixels:1,024 x 768
Brightness:450 cd/m2
Horizontal viewing angle:170 degrees
Vertical viewing angle:170 degrees
Response time:16 ms
Lamp life:60,000 hours
Color temperature control:Yes
Front AV jacks:Yes (including S-video)
Wall mountable:Yes (features VESA-compliant mounting holes)
Power supply:AC 120V, 60 Hz
Power consumption: 118 watts (standby: less than 1 watt)
Energy Star compliant:Yes
Optional accessories:Wall-mount unit SU-W210
Width:24.8 inches
Height:18.1 inches (with stand; 15.7 inches without)
Depth:9.5 inches (with stand; 4.9 inches without)
Weight:24.94 pounds with stand and rear cover (18.94 pounds without stand and rear cover)
Shipping dimensions:30.4 x 23.2 x 13.8 inches (W x H x D)
