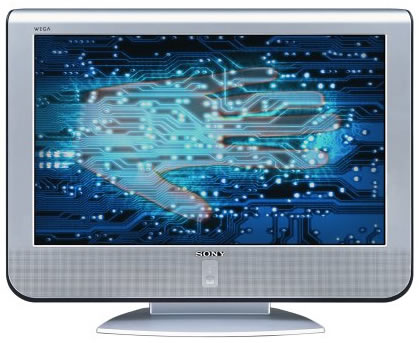

Sony KLV-32M1

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

Sony KLV-32M1

Specifications

Screen size:32 inches
TV type:LCD
HDTV capable:Yes
Aspect ratio:16:9
3:2 pulldown detection:Yes (CineMotion reverse 3:2 pulldown technology)
Memory port:No
Speaker wattage per channel:10 watts x 2
Number of speakers:2
Noise reduction:Yes
Signal type:NTSC, decoded ATSC (480p, 720p, 1080i)
Picture enhancements:Digital Reality Creation circuitry, LCD panel driver LSI, Direct Digital II Circuitry (DDC)
Picture-in-picture (PIP):No
Remote control:Yes
Surround sound:TruSurround SRS audio processing (simulated surround from 2 speakers)
VGA/SVGA input:0
Audio outputs: 1 stereo analog (left/right) RCA: fixed-/variable-level
Audio inputs:4 stereo analog (left/right) RCA, 1 monaural center-speaker input (RCA)
Video outputs:0
Video inputs:9
Headphone jack:Yes
Digital video input:1 (HDMI)
Component video:1
Composite video:3
S-video:3
RF:1
Pixels:1,366 x 768
Horizontal viewing angle:170 degrees
Vertical viewing angle:170 degrees
Front AV jacks:No
Wall mountable:Yes
Energy Star compliant:Yes
Width:32.87 inches
Height:23.76 inches (without stand), 26.4 inches (with stand)
Depth:4.33 inches (without stand), 11.32 inches (with stand)
