Sony KLV-S26A10

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

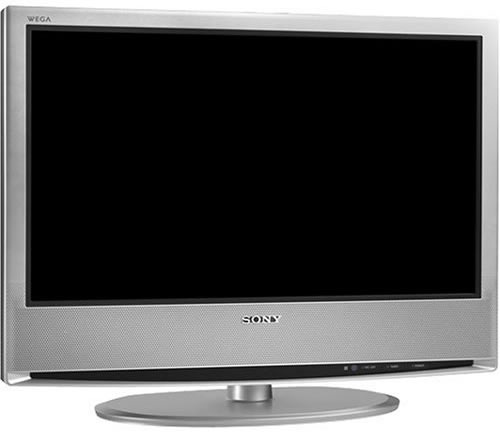

Sony KLV S26A10

Specifications

Screen: 29 inch LCD
Vertical Frequency (Hz):56 / 60 / 72 / 73 / 75
Native Resolution:720p
Contrast Ratio:TBD
Horizontal Scan (KHz) for PC:31/ 31.5 / 35.2 / 37.9 / 46.9 / 47.4 / 47.7 / 47.8 / 56.5 / 60 / 60.3
Display Resolution:1366 x 768
Overscan:Normal, +1, +2
Viewing Angle: Right/Left: 170°, Up/Down: 170°
Display Response Time:TBD
Vertical Size:+10 to -10 (TV) +50 to -50 (PC)
Vertical Center:+10 and -10 (Zoom) +10 and -10 (Wide Zoom)
Horizontal Center:+10 to -10 (TV) +50 to -50 (PC)
Tuner:Analog
Video Signal System:NTSC
Video Processing:One-chip Video Processor
Color Temperature:Cool, Neutral, Warm
Dynamic PictureT Processor Circuitry:Black Corrector
Noise Reduction:Yes
CineMotion« Reverse 3:2 Pulldown Technology:Yes
Screen Modes (4:3):Wide Zoom, Normal, Full, Zoom
Screen Modes (16:9):Wide Zoom, Normal, Full, Zoom, Off
Wide Mode (16:9):Wide Zoom, Full, Zoom
Wide Mode (4:3):Wide Zoom, Normal, Full, Zoom
Comb Filter:3D Digital Comb Filter
Phase (PC Only):Yes
Pitch (PC Only):Yes
Light Sensor:Yes
Picture Modes:Vivid, Standard, Pro
Speaker Type:Oval cone
Speakers (Total):2
Full Range Speaker Size:55 x 150mm (Oval)
Audio Power Output:20W Total (10W x 2)
Tone Control(s):Treble and Bass
Sound Mode:Dynamic, Natural, Clear Voice, Mode Memory, Simulated
MTS Stereo Decoder:Yes
Digital Amplifier:Yes
Audio Mute:Yes
Speaker On/Off:Yes
Simulated Surround:Yes
SRS« WOW Audio:Yes
SRS« TruSurround« Audio Effect:Yes
Stand Tilt Range:L/R
Stand Swivel Range:Forward 3░ / Back 8░
Channel Label:Yes
Channel Skip/Add:Yes
Channel Jump:Yes
Favorite Channel:Yes
Speed SurfT Channel Selection:Yes
WEGA GATET Technology:Yes
Program Guide Access:Yes
Auto Channel Programming:Yes
Multiple Language Display:English; Espa˝ol; Franšais
Mode Memory:Yes
Info Banner:Yes
Sleep Timer:15, 30, 45, 60, 90, Off
Timer Events:Timer 1, Timer 2
Freeze Memo Screen Freeze:Yes (with PIP)
Clock:Yes
Picture-in-Picture:Yes
Power Save Mode:Standard, Reduced, Picture Off
Built-In AC Adaptor:Yes
Audio In:5 (1 Side / 4 Rear)
Audio Out (Variable/Fixed):1 (Rear)
Component Video (Y/Pb/Pr ) Input(s):1 (Rear) 480i, 480p, 720p, 1080i
Composite Video Input(s):3 (1 Side / Rear)
HDMIT Connection Input(s):1 (Rear) with Analog Audio
RF Connection Input(s):1 (Rear)
S-Video Input(s):3 (1 Side / 2 Rear)
Headphone Output(s):1 (Side)
PC Audio Input(s):1 (Rear)
PC Video Input(s):1 (Rear) - D-sub 15
Internal Power Supply:Yes
Power Consumption (in Operation):Less than 155W
Power Consumption (in Standby):Less than 1W
Power Requirements:AC 120-240V, 50/60Hz
Energy Star« Compliant:Yes
VESAT:VESA FDMI Compliant Mounting Holes; Energy StarT
Aspect Ratio:16:9
Screen Size:26"
Auto SAP:Yes
Channel Fix:Yes
Closed Caption (CC):Yes
ID1 Detection:Yes
Video Label:Yes
Clean Wire Management:Yes
Weight :36 lbs. 10 oz. (16.6 kg) with stand
28 lbs. 4 oz. (12.8 kg) without stand
Dimensions (WxHxD) :26" x 20 3/8" x 12 1/4" (658 x 517 x 309mm) with stand
26" x 18 3/4" x 3 5/8" (658 x 474 X 90 mm) without stand
