Sony KP-46WT520

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

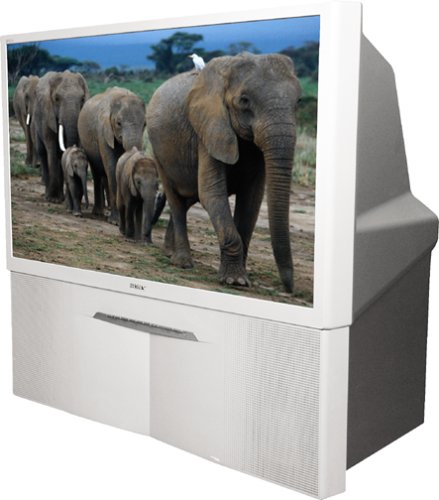

Sony KP-46WT520


Screen size:46 inches
TV type:Rear-projection
HDTV capable:Yes
Aspect ratio:16:9
CRT:HD Microfocus CRT and lens system
Convergence:Flash Focus auto and manual convergence
3:2 pulldown detection:Yes (CineMotion reverse 3:2 pulldown)
Speaker wattage per channel:20
Number of speakers:2
Flash-memory port:No
Includes radio:No
Comb filter:3D digital comb filter
Line doubling:Yes (Digital Reality Creation Circuitry, which enhances standard-definition sources)
Noise reduction:No
Signal type:NTSC, decoded ATSC (480p, 720p, 1080i)
Black-level expansion:No
Auto pedestal clamp:Yes
Auto white balance:Yes
Picture enhancements:Digital Reality Creation MultiFunction Circuitry, Multi Image Driver (MID X) Circuitry, Dynamic Focus circuitry (automatically adjusts the picture during each scanning line for consistent corner-to-corner sharpness), Dynamic Picture processor
Picture modes:Auto 16:9 enhanced mode with auto ID1 detection; Program Palette presets (Vivid, Movie, Standard, Sports); wide modes (normal, zoom, full, wide zoom)
Surfing:Speed Surf channel surfing; scrolling channel index (1 "main" picture and 4 scrolling channels)
Picture freeze:Yes
Auto channel setup:Yes
Channel fix:No
Channel labeling:Yes
Input labeling:Yes
Closed captioning:Yes
Favorite channel:Yes
Last-channel recall:Yes
Multilingual menu:English, Spanish, French
Parental control:Yes
Picture-in-picture (PIP):Yes (2-tuner TwinView picture-and-picture)
Remote control:Yes
Auto clock set:Yes (with XDS extended data service information)
Sleep timer:Yes (and 2-event wake timer)
Audio tone controls:Yes (electronic bass, treble), BBE sound enhancement
Audio balance:Yes
Surround sound:SRS TruSurround simulated surround sound, plus 3D audio system
VGA/SVGA input:0
Audio outputs:1 stereo analog (left/right) RCA
Audio inputs:7 stereo analog (left/right) RCA
Video outputs:1 (RF)
Video inputs:12
Headphone jack:No
Digital video input:1 (HDMI)
Component video:2 (HD)
Composite video:4
RF:2 inputs, 1 output
Control port:Yes (Control S)
Monitor:No (includes 2 NTSC tuners)
Color temperature control:Yes (Trinitone color temperature control)
Front AV jacks:Yes
Sound leveler system:Yes (SteadySound)
Wall mountable:No
Power supply:AC 120V, 60 Hz
Power consumption:260 watts (standby
Energy Star compliant:Yes
Width:42.75 inches
Height:40 inches
Depth:23.9 inches
Weight:135 pounds
Warranty:1 year parts and 90 days labor
In the box:TV, remote control, remote batteries (2 AA), a user's manual, and warranty information
