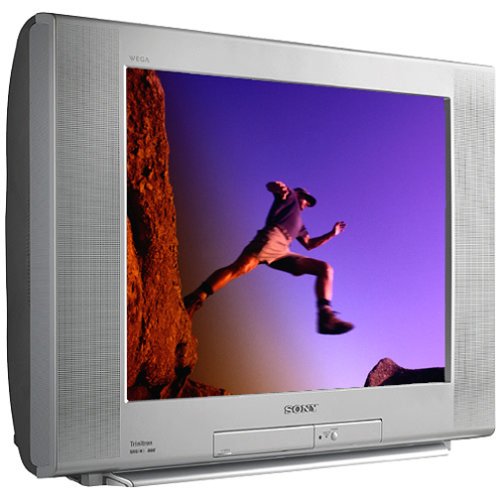

Sony KV-20FS120

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

Sony KV 20FS120

Specifications

Screen size:20 inches
TV type:CRT with FD Trinitron picture tube
HDTV capable:No
Aspect ratio:4:3
Speaker wattage per channel:10
Number of speakers:2
Includes radio:No
Comb filter:Digital
Invar shadow mask:No
Scan velocity modulation:No
Auto white balance:Yes
Line doubling:No
3:2 pulldown:No
Noise reduction:No
Apacon:No
Includes DVD player:No
Includes VCR:No
Signal type:NTSC
Protective screen guard:No
Auto channel setup:Yes
Channel fix:Yes
Channel labeling:Yes
Input labeling:Yes
Closed captioning:Yes
XDS (Extended Data Service) banner:Yes
Mute:Yes
Surfing:Speed Surf channel selection
Picture enhancements:Vertical Aperture Compensation; vertical compression, tilt correction, Dynamic Picture Processor circuitry, auto white balance
Picture presets:Vivid/Standard/Movie/Sports
Favorite channel:Yes
Last-channel recall:Yes
Multilingual menu:Yes (English, Spanish, French)
Front-panel menu access:Yes (remote not required for use)
Parental control:Yes (V-Chip)
Picture-in-picture (PIP):No
Remote control:Yes
Sleep timer:Yes
Clock/timer:Yes (2-event)
VGA/SVGA input:0
Audio outputs:0
Audio inputs:5 stereo analog (left/right) RCA
Video outputs:0
Video inputs:7
Headphone jack:Yes (.125-inch)
Digital-video input:0
Component video:1
Composite video:2
S-video:1
RF:1
Monitor:No (includes 181-channel NTSC tuner)
Color temperature control:Yes (Trinitone)
Surround sound:Matrix
Front AV jacks:Yes
Side AV jacks:No
Sound leveler system:No
Auto pedestal clamp:Yes
Power supply:AC 120V, 60 Hz
Power consumption: In operation: 165 watts; in standby: 1 watt
Energy Star compliant:Yes
UPC:0272426417610
Width:24.875 inches
Height:18.375 inches
Depth:19.25 inches
Weight:55.56 pounds
In the box:TV, remote control (RM-Y194), remote batteries, a user's manual, and warranty information
