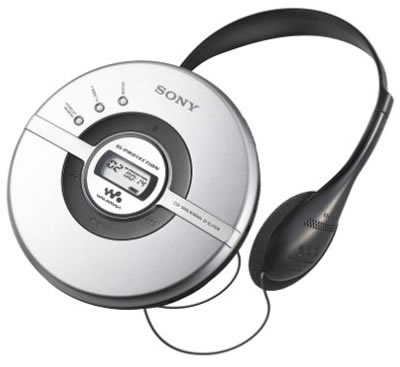

Sony D-EJ109
User Manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!
If you're happy with the manual, a small donation would be very much appreciated. Thanks!
Features
- Compatible with CD-R, CD-RW, and store-bought CD formats
- Track programming and bookmark function; runs for 50 hours on 2 AA batteries
- Digital Mega Bass sound boost
- G-protection technology keeps discs from skipping

Specifications
Digital-Analog Conversion: | 1-bit |
D/A Conversion: | 1 Bit Quartz Time-Axis Control |
Frequency Response: | 20-20000Hz, +1/-2dB |
Inputs: | DC-In 4.5V |
Outputs: | Headphone (stereo mini jack) |
Power Requirements: | DC 1.5V x 2 ("AA" x 2 Batteries) |
Battery Life (Approx.): | 50 Hours with "AA" Sony Alkaline Batteries x 2 (G-Protection on) |
Dimensions (WHD): | 5 3/8" x 20/32" x 5 3/8" (135.8 x 22.8 x 135.8mm) |
Weight: | 6.4 oz (180g) |
Supplied Accessories: | MDR-027LP Stereo Headphones |
Optional Accessories: | AC-E45HG/E45A AC Adapter, DCC-E345 Car Battery Cord, RK-G129HG/G136HG Connecting Cord, CPA-9C Car Connecting Pack, DCC-E34CP Car Battery Cord |
In the Box: | D-EJ109 CD Walkman Portable Compact Disc Player, MDR-027LP Stereo Headphones, user manual |
