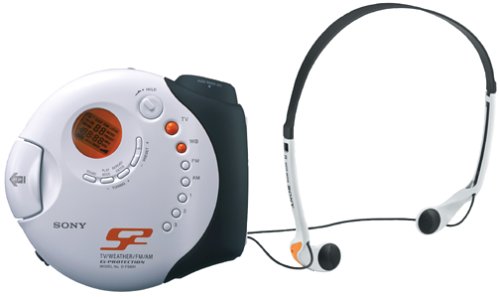

Sony D-FS601 S2 Sports CD Walkman

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!


Sony D-FS601 S2


Text display:No
MP3 playback:No
Compatible formats:Audio CD, audio CD-R, audio CD-RW
Includes radio:Yes (AM/FM/TV/weather band digital tuner)
Radio presets:7 TV, 4 weather, 30 FM, and 10 AM
Antiskip protection:Yes (Ultimate Skip-Free G-Protection technology on the pick-up mechanism to provide super-quick recovery from both horizontal and vertical shock)
HDCD decoding:No
Headphone jack:Yes (.125-inch)
Intro scan:No
Headphone volume control:Yes (digital)
Audio outputs:1 stereo analog line output (minijack .125-inch jack)
Number of discs:1
Favorite track search:No
Peak level search:No
Random play:Yes
Remote included:No
Repeat play:Yes (one/all/program)
Sleep timer:No
Track programming:Yes (64 tracks)
Tone controls:No
Records CDs:No
Frequency response:20 to 20,000 Hz (- 13 dB at the extremes)
Batteries:2 AA or Sony Nickel Cadmium NC-WMAA rechargeable batteries or Nickel Metal Hydride NH-WM2AA rechargeable batteries (no batteries included)
Battery life:Up to 40 hours
In the box: CD player, MDR-W014 stereo headphones, AC-ES455 4.5-volt AC adapter, user's manual, warranty information
Length:5.8 inches
Width:5.3 inches
Height:1.5 inches
Weight:.79 pounds (without batteries)
