Sony D-NE506CK


Records CDs:No
Text display:Yes (ID3 tag display and CD Text feature)
MP3 playback:Yes
Folder navigation:Yes (file-view image display)
Jog-dial navigation:Yes (high-speed, intuitive file navigation)
Compatible formats:CD, CD-R, and CD-RW, including discs formatted in the ATRAC3plus, ATRAC3, and MP3 formats
Display:4-line dot-matrix, 3-color playback-mode LED (indicates if you are in ATRAC, MP3, or standard CD playback mode)
Includes radio:No
Built-in speaker:No
Heat-resistant:Yes (lid)
Antiskip protection:Yes (Skip-Free G-Protection)
Audio DAC:1-bit quartz time-axis control
HDCD decoding:No
Headphone jack:Yes (.125-inch)
Intro scan:Yes (works with shuffle and repeat modes, too)
Playback modes:18
Music groups:No
Headphone volume control:Yes
Volume control:Digital (gives you precise adjustments; volume appears on the display)
Audio outputs:0
Number of discs:1
Auto shut off:Yes (conserves batteries)
Favorite track search:Yes (auto-ranking system)
Peak level search:No
Random play:Yes
Remote included:Yes (clip-on)
Repeat play:Yes (1/all/program)
Sleep timer:No
Track programming:32 tracks (with easy bookmark programming)
Auto-ranking playback:Yes (program your favorite song based on listening frequency)
Tone controls:3 preset and 1 custom equalization mode
Volume limiter:Yes (AVLS, maintains a low level to protect hearing, conserve batteries, and even the listening level of material originally recorded at different times)
Frequency response:20 to 20,000 Hz (+1, -2 dB)
Power supply:AC/DC 3.0V (through optional adapter), or DC 1.5V x 1 (batteries)
Batteries:1 AA
Battery life:Up to 60 hours continuous playback from 1 AA battery (ATRAC CD recorded at 48 kbps, G-Protection 2 on); up to 70 hours continuous audio CD playback
Supplied software:SonicStage (for ATRAC3plus music encoding and management)
Width:5.125 inches
Height:1.125 inches
Depth:5.625 inches
Weight:6.7 ounces (without batteries)

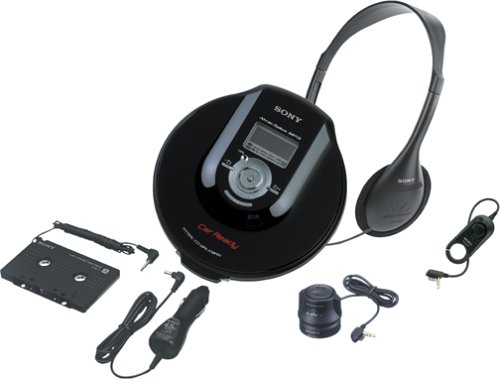

In the box:CD player, MDR-027LP stereo headphones, a clip-on remote control, CD-ROM (SonicStage software), an AC power adapter, a car kit (including cassette-shell audio adapter, DC power adapter, car remote control, and Velcro adhesive tape), a user's manual, and warranty information
