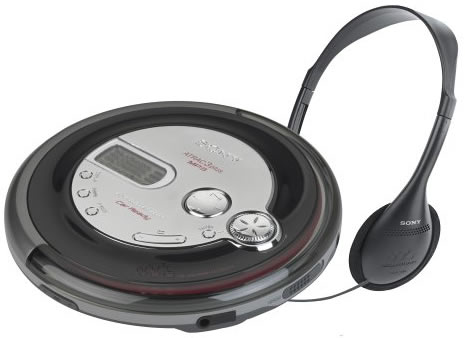

Sony D-NE718CK Walkman with Car Kit

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

Specifications

Color:Silver/black
Records CDs:No
Text display:Yes (CD Text, ID3 tags)
MP3 playback:Yes
Compatible formats:CD, audio CD-R, audio CD-RW, MP3 CD, ATRAC3Plus CD, ATRAC3 CD
MP3 bitrates:16-320kbps
Includes radio:No
Built-in speaker:No
Antiskip protection:Skip-Free G-Protection Technology
Display:3-line dot-matrix display (provides ID3 tag information for fast and easy identification and location of your ATRAC or MP3 selections and makes it easy to search all music files even in another folder layer)
HDCD decoding:No
Bookmarking:Yes (program your favorite songs from multiple CDs and play them back with the touch of a button)
Headphone jack:Yes
Volume control:Digital (front-panel push button with readout on LCD)
Intro scan:No
Resume:No
Hold:No
Music groups:Yes (using supplied software)
Headphone volume control:Yes
Audio outputs:0
Number of discs:1
Jog Dial Playback Operation:Yes (provides high-speed search capability)
Favorite track search:No (but offers bookmarking)
Peak level search:No
Playback modes:14
Random play:Yes
Remote included:Yes (wired car remote with Easy Skip functionality)
Repeat play:Yes
Sleep timer:No
Track programming:Yes
Tone controls:Digital Mega Bass Sound
Audio DAC:1-bit with Quartz Time-Axis Control
Frequency response:20-20000Hz, +/-3 dB
Heat-resistant lid:Yes (helps protect against high temperature build-up especially when using the CD Walkman in hot climates and in vehicles)
Software:SonicStage Simple Burner Software (lets you add your own titles and edit your music groups when making recordable CDs of your music)
Software system requirements:IBM PC/AT or compatible Manufacturer; Installed OS
Batteries:2 AA (not included)
Battery life:Over 95 Hours of Continuous Playback with 2 "AA" Batteries (Not Included) for ATRAC3plus Playback; 55 Hours for CD Audio Playback
Battery-level indicator:Yes
Power supply:DC-In 4.5V
Length:5.375 inches
Width:5.375 inches
Height:1.125 inches
Weight:7 ounces
In the box: CD player, Tuner Remote, Car Accessories (Car Cassette Adaptor, Car AC Adaptor, Velcro Tape), AC Adaptor, MDR-027LP Stereo Headphones, SonicStage CD Simple Burner Software, user's manual, warranty information
