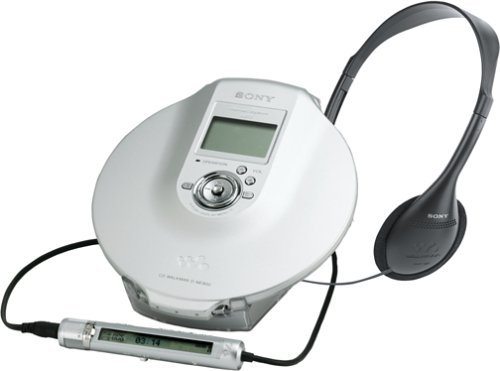

Sony D-NE900 CD Walkman

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

Sony D-NE900

Specifications

Text display:Yes (ID3 tag display and CD Text feature)
MP3 playback:Yes
Folder navigation:Yes (file-view image display)
Jog-dial navigation:Yes (high-speed, intuitive file navigation)
Compatible formats:CD, audio CD-R, and audio CD-RW, including discs formatted in the ATRAC3plus, ATRAC3, and MP3 formats
Records CDs: No
Display:4-line dot-matrix, 3-color playback-mode LED (indicates if you are in ATRAC, MP3, or standard CD playback mode)
Includes radio:No
Built-in speaker:No
Water-resistant:No
Heat-resistant:Yes (lid)
Antiskip protection:Yes (Skip-Free G-Protection)
Audio DAC:1-bit quartz time-axis control
HDCD decoding:No
Headphone jack:Yes (.125-inch)
Intro scan:Yes (works with shuffle and repeat modes, too)
Resume:No
Hold:No
Playback modes:18
Music groups:No
Headphone volume control:Yes
Volume control:Digital (gives you precise adjustments; volume appears on the display)
Audio outputs:0
Number of discs:1
Auto shut off:Yes (conserves batteries)
Favorite track search:Yes (auto-ranking system)
Peak level search:No
Random play:Yes
Remote included:Yes (slim-stick with backlit dot-matrix display)
Repeat play:Yes (1/all/program)
Sleep timer:No
Track programming:32 tracks (with easy bookmark programming)
Auto-ranking playback:Yes (program your favorite song based on listening frequency)
Tone controls:3 preset and 1 custom equalization mode
Volume limiter:Yes (2-position AVLS, maintains a low level to protect hearing, conserve batteries, and even the listening level of material originally recorded at different times)
Frequency response:20 to 20,000 Hz (+1, -2 dB)
Power supply:AC/DC 3.0V (through supplied adapter), or DC 1.5V x 1 (batteries)
Batteries:1 AA
Battery life:Up to 85 hours continuous playback from 1 "gum-type" NH-14WM rechargeable battery (supplied) and 1 optional AA battery (ATRAC CD recorded at 48 kbps, G-Protection 2 on)
Supplied software:Sonic Stage (for ATRAC3plus music encoding and management)
Optional accessories:Vehicle power cord
Width:5 inches
Height:.875 inches
Depth:5.5 inches
Weight:6 ounces (without batteries)
In the box:CD player, MDR-027 stereo headphones, LCD Remote Commander remote control, rechargeable battery (NH-14WM), backlit battery-charging stand, external battery case (AA x 1, battery not included), a CD-ROM (Sonic Stage software), a carry case, an AC power adapter, a user's manual, and warranty information
