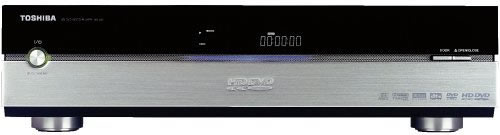

Toshiba HD-XA1
User Manual
Sorry, we do not currently have a manual available for this item.
Request a manual | Submit a manual
Request a manual | Submit a manual
Features
- Standard DVD up-conversion to 720p or 1080i through HDMI interface
- Multiformat compatibility: HD-DVD, DVD, DVD-R/-RW, DVD-RAM, CD, CD-R/-RW
- Onboard Dolby Digital, Dolby Digital Plus, and Dolby TrueHD (2 channel); DTS and DTS-HD decoding with 5.1 analog audio outputs
- Multichannel 24-bit/192-kHz audio DACs
- High-definition DVD playback via HDMI interface at 720p/1080i resolution
Specifications
| Disc playback: | HD-DVD, DVD, DVD-R/-RW/-RAM, CD, CD-R/-RW |
| HD output: | Yes, using HDMI at disc native resolution |
| Video DAC: | 11-bit/216-MHz |
| Video up-conversion for DVD: | 720p/1080i |
| Enhanced black level: | 0IRE/7.5IRE selection |
| Letterbox and pan-and-scan support: | Yes |
| Built-in audio decoders: | Dolby Digital, Dolby Digital Plus, DTS, and DTS-HD |
| Dolby TrueHD compatible: | Yes (2 channel) |
| Signal processors: | Four 32-bit floating-point |
| Audio DACs: | Multichannel 24-bit/192-kHz |
| HDMI audio support: | Yes, up to 5.1 L-PCM |
| 5.1 channel bass management: | Speaker size, speaker distance, user-selectable crossover (80Hz, 100Hz, 120Hz), channel level adjustment |
| Dynamic range control: | Yes |
| MP3 and WMA playback: | Yes |
| Remote control: | Yes, motion-activated, backlit |
| On-screen display: | Yes, trilingual: English, French, Japanese |
| Bit-rate display: | Yes |
| FL dimmer: | Yes |
| Fast forward: | Yes |
| Fast reverse: | Yes |
| Slow play: | Yes |
| Step play: | Yes |
| Time search: | Yes |
| A-B repeat: | Yes |
| Screen saver: | Yes |
| Parental lock: | Yes |
| USB: | 2 |
| HDMI (ver. 1.1): | 1 |
| ColorStream Pro component video: | 1 |
| S-Video: | 1 |
| Composite video: | 1 |
| Stereo analog audio: | 1 |
| Analog audio: | 5.1 multichannel |
| Coaxial digital output: | 1 |
| TosLink optical digital output: | 1 |
| Ethernet 10/100 port: | 1 |
| RS-232C: | 1 |
| Width: | 17" |
| Height: | 4" |
| Depth: | 14" |
