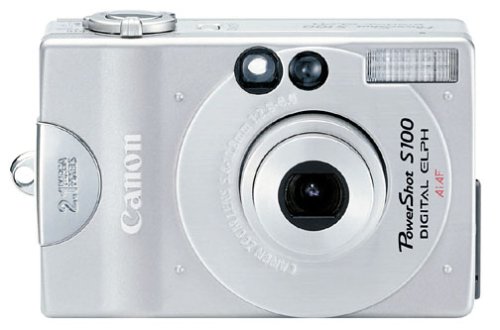

Canon PowerShot S100

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!


PowerShot S100


Maximum image resolution:1,600 x 1,200
Image resolution options:1,600 x 1,200
Image resolution options:N/A
Image resolution options:640 x 480
Maximum CCD resolution:2.1 million pixels
CCD size (inches):0.37
Optical viewfinder:Yes
LCD screen size:1.5 inches
LCD swivel:No
Optical zoom:2 x
Digital zoom:4 x
Lens construction:Glass, including 3 aspherical elements
Compatible memory type:CompactFlash
Onboard memory:0 MB
Included memory cards:8 MB CompactFlash
Max. photos at highest quality:4
Max. photos at lowest quality:46
Image type(s):JPEG
Uncompressed mode:No
ISO film-speed equivalency:100
Macro focus range:0.27 to 0.57 meters
Shutter speed range:2 to 1/1,000
Autofocus system:TTL, 3-point AiAF
Manual focus:No
Focus range:0.59 meters to infinity
Main exposure mode:TTL, 64 segments
Spot metering mode:No
Manual exposure mode:Yes
Programmed exposure modes:Landscape, manual, panorama, slow-synch
Manual white balance mode:Yes
Built-in flash:Yes
Red-eye reduction:Yes
Fill-flash (forced flash):Yes
Flash-off mode:Yes
Night portrait (flash synch) mode:Yes
Hot shoe for external flash:No
Black and white:Yes
Movie mode:No
Audio recording:No
Burst mode or continuous shooting:Yes
Frames/sec in burst mode:2
Self timer:Yes
Remote included:No
Other special features:9 image review
Compatible systems:PC, Mac
Mac system requirements:Power Macintosh, PowerBook, iMac or iBook, Mac OS 7.5 or higher, Quicktime 2.1 or higher, 20 MB or more application memory, USB port
PC system requirements:Windows 95/98/NT4.0/2000/ME, Pentium 133 or better, 32 MB RAM or better (Windows 95/98), 64 MB RAM (Windows 2000/ME)
Software included:Adobe PhotoDeluxe, PhotoStitch, ZoomBrowser EX (Windows), ImageBrowser (Macintosh)
Serial output:No
USB output:Yes
Video output:Yes
Battery requirements:Lithium
Batteries included:Yes
Rechargeable batteries included:Yes
AC adapter included:No
Body type:Point-and-shoot
Included in box:PowerShot S100 digital camera; 8 MB CompactFlash card; lithium- ion battery; battery charger; USB, video cables; camera strap; CD-ROM; user's manual
Width:3.4 inches
Height:2.2 inches
Depth:1.1 inches
Weight:0.42 pounds
