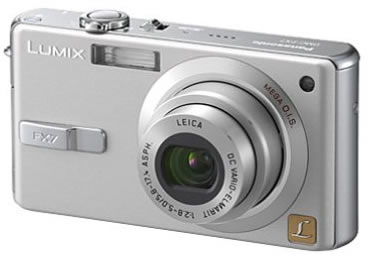

Panasonic Lumix DMC-FX7-S

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

DMC-FX7 S

Specifications

Camera Effective Pixels:5.0 Megapixels
Image Sensor:1/2.5", 5.36 Mega Total Pixels CCD; Primary Color Filter
Zoom: 3x optical, 4 x digital ( Max. 12 x total)
Focal Distance:f=5.8-17.4mm (35mm Equiv.
Lens:LEICA DC VARIO-ELMARIT; 7 elements in 6 groups; (3 Aspherical Lenses / 3 Aspherical surfaces)
F Stop:F2.8 - F5.0
Optical Image Stabilizer:MEGA O.I.S. (Mode1/ Mode2)
Focusing Area:Normal
AF Metering:1 point/3 points/9 points/Spot
Focus:Auto Focus System, Normal/Macro (Dial);
AF Assist Lamp:Yes
ISO Sensitivity:Auto/80/100/200/400
White Balance:Auto/Daylight/Cloudy/Halogen/White Set; White Balance Adjustment ( 150K step, -1500 - +1500 K) (except for auto set)
Exposure:Program AE;
Exposure Compensation:1/3 EV step, -2 - +2 EV
Backlight Compensation:Yes (at simple mode)
Auto (AE) Bracketing:+/- 1/3 EV -1EV step, 3 frames
Light Metering:Intelligent Multiple
Scene Mode:Dial
Shutter Speed:8-1/2000 sec
Aperture:2 steps (Wide
Self Timer:10 sec / 2sec
Auto Review:1sec/3sec/zoom
Review:1x / 4x / 8x
Picture Adjustment:natural, standard, vivid; ;
Color Effect Mode:Cool, Warm, Black & White, Sepia
Recording Format:Still Image
Recording Image Size:2560 x 1920 pixels, 2048 x 1536 pixels, 1600 x 1200 pixels; 1280 x960 pixels, 640 x 480 pixels, 1920 x 1080 pixels; 320 x 240 pixels (Motion Image)
Image Quality:Fine / Standard
Motion Image:320 x 240 pixels 30 fps, 10 fps ; Max. recording time depends on Memory Card Capacity
Burst Shooting Mode:Full-Resolution Image, 3 frames/sec or 2 frames/sec; Full-resolution
Infinite consecutive shooting:Yes
Still Image Rec. with Audio:5 sec
Audio Dubbing:Max. 10sec
Real-time histogram:Yes
Guide line:Yes
Flip Animation:Yes
Economy mode:Yes
Built-in-Flash:Auto, Auto/Red-eye Reduction, Slow Sync./Red-eye Reduction, Forced On/Off; ; 0.3 - 4.0m (Wide/ISO Auto), 0.3 - 2.2m (Tele/ISO Auto);
LCD Monitor:2.5" Polycrystalline TFT LCD Display (114K Pixels); Field of View
Playback mode:9-thumbnail display, zoomed playback (16x max.), image rotation; Slide show (the frame-to-frame time is adjustable); Resizing (selectable number of pixels), trimming, protection, DPOF print setting
OSD language:Japanese,English,Germany,French,Italian,Spanish,Chinese
Recording Media:SD Memory Card, MultiMediaCard
Microphone:Yes
Speaker:Yes (Only beep)
Interface:DC Input, AV Output (NTSC/PAL), USB
Direct Print:PictBridge
Power:Li-ion Battery Pack (3.7V, 710mAh) (Included); Battery Charger/AC Adaptor (Input
Battery life (approx.):120 pictures (CIPA Standard);
Included Software:SD Viewer for DSC, ; ArcSoft PhotoBase, ArcSoft PhotoImpression,; ArcSoft Panorama Maker; USB Driver
Standard Accessories:Battery Charger, Battery Pack, Battery carrying case, SD Memory Card (16 MB); AV Cable; USB Connection Cable, Strap, CD-ROM
Dimensiones (W x H x D):94.1 x 50.0 x 24.2 mm ( 3.70 x 1.97 x 0.95 inch)
Weight:Aprox. 135g. (0.30 lb); Aprox. 153g with Battery and SD Memory Card (0.34 lb)
