Samsung LT-M245W

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

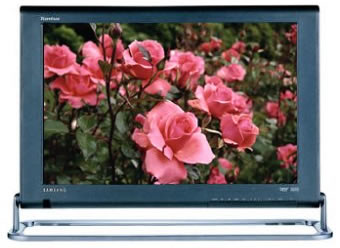

Samsung LTM-245W


Screen size:24 inches
TV type:LCD
HDTV capable:Yes
Aspect ratio:16:9
Speaker wattage per channel:5
Number of speakers:2 (detachable)
Comb filter:Yes (2D digital)
Signal type:NTSC, 480i, 480p, 720p, 1080i
Auto channel setup:Yes
Closed captioning:Yes
Last-channel recall:Yes
Multilingual menu:Yes (English, French, Spanish)
Parental control:Yes (V-Chip)
Picture-in-picture (PIP):Yes (split side-by-side P and P; PC PIP lets you watch TV and PC simultaneously)
Remote control:Yes
Sleep timer:Yes (10 minutes to 6 hours)
Surround sound:Yes (simulated)
VGA/SVGA input:No
Audio outputs:0
Audio inputs:1 stereo analog audio (left/right)
Video outputs:0
Video inputs:5 (S-video, interlaced component-video, progressive HD component-video, PC/composite-video, RF)
Headphone jack:Yes
Component video:2
Composite video:1
Pixels:1,900 x 1,200 (WUXGA)
Contrast ratio:500:1
Brightness:350 cd/m2
Horizontal viewing angle:150 degrees
Vertical viewing angle:120 degrees
Response time:25 ms
Lamp life:60,000 hours
Color temperature control:Yes
Front AV jacks:No
Length:2.8 inches (without stand)
Width:25.8 inches (with stand)
Height:18.6 inches (with stand)
Weight:30.5 pounds (with stand)
