Sony KV-27FS320

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

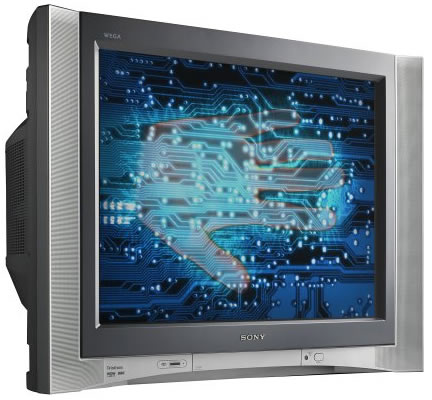

Sony KV-27FS320


Screen size:27 inches
TV type:CRT with FD Trinitron WEGA screen
HDTV capable:No
Aspect ratio:4:3
Speaker wattage per channel:10
Number of speakers:2
Flash-memory port:Yes (Memory Stick for JPEG image viewing)
Includes radio:No
Comb filter:Digital
Invar shadow mask:No
Scan velocity modulation:Yes (Clear Edge VM wideband velocity scan modulation)
Auto white balance:Yes
Line doubling:No
3:2 pulldown:No
Noise reduction:No
Includes DVD player:No
Includes VCR:No
Signal type:NTSC
Protective screen guard:No
Auto channel setup:Yes
Channel labeling:Yes
Channel fix:Yes
Input labeling:Yes
Closed captioning:Yes
Mute:Yes (and auto mute)
XDS banner:Yes
Surfing:Speed Surf channel selection
Picture enhancements:Dynamic Focus circuitry, Dynamic Picture Processor circuitry, Magnetic Quadra Pole, tilt correction, Vertical Aperture Compensation, 16:9 enhanced mode with ID1 detection (which uses all available scan lines for the widescreen image and wastes none in rendering the black bars at the top and bottom of the screen)
Picture modes:Program Palette presets
Favorite channel:Yes
Last-channel recall:Yes
Multilingual menu:Yes (English, Spanish, French)
Parental control:Yes (V-Chip)
Picture-in-picture (PIP):No
SAP:Yes (auto SAP)
Remote control:Yes
Sleep timer:Yes
Clock/timer:Yes (2-event)
Audio tone controls:BBE sound enhancement
Surround sound:SRS WOW audio (simulates surround sound from 2 speakers)
VGA/SVGA input:No
Audio outputs:2 stereo analog (left/right) RCA
Audio inputs:5 stereo analog (left/right) RCA
Video outputs:1 (composite-video)
Video inputs:8
Headphone jack:No
Digital video input:0
Component video:2
Composite video:3
S-video:2 (with detection)
Monitor:No (includes 181-channel NTSC tuner)
Color temperature control:Yes (Trinitone)
Front AV jacks:Yes
Side AV jacks:No
Sound leveler system:Yes (SteadySound)
Optional accessory:Stand
Power supply:AC 120V, 60 Hz
Power consumption:Information not available
Energy Star compliant:Yes
Auto pedestal clamp:Yes
Width:30.875 inches
Height:23.625 inches
Depth:20.5 inches
Weight:104.5 pounds
